Modular System for Partial Discharge Monitoring

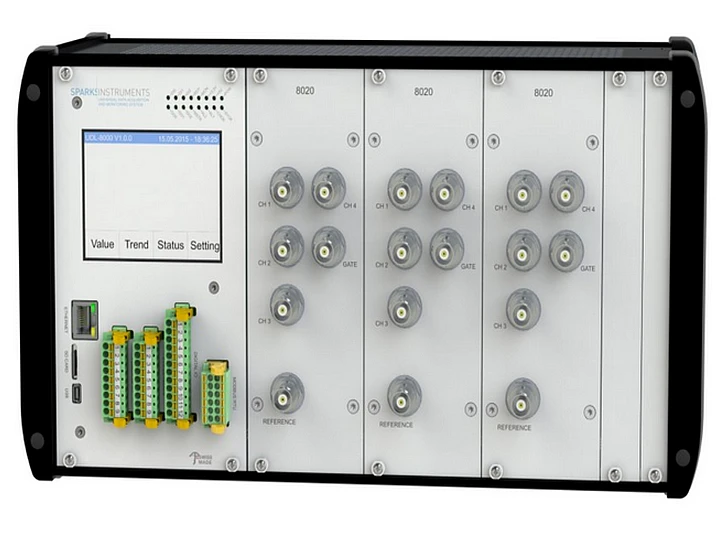

UDL-8000 PDSIM
- Continuous high-speed monitoring in accordance with IEC 60270
- Simultaneous 5-channel real-time partial discharge monitoring
- Ability to cross-correlate signals for precise discharge localization
- Improved technique for 3-phase interference suppression
- Supports various sensors (coupling capacitors, HF current transformers, TEV probes)
- Ethernet interface, Modbus RTU/TCP, and optional 4–20 mA I/O
- Modular system (4 to 16 channels) based on the M8022 hardware platform
- Wide frequency range from 40 kHz to 300 MHz with adjustable HP/LP filters
- Can be connected to the TMS 2000 diagnostic software
- Standalone operation
