Electric Machines Insulation Condition Monitoring

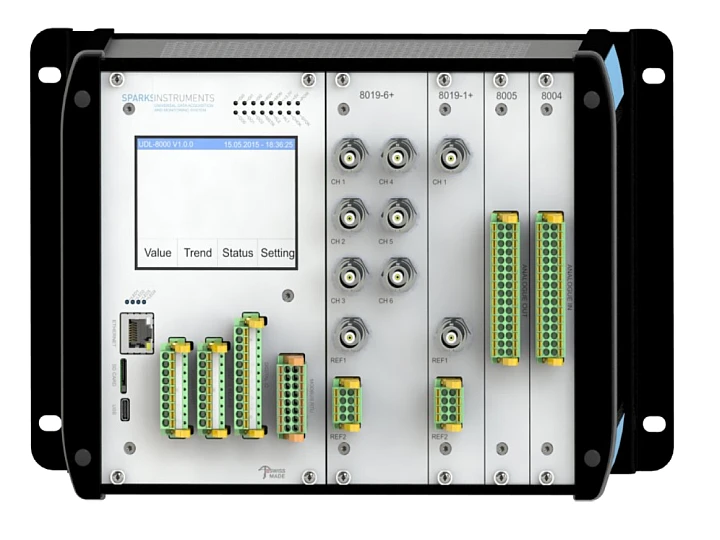

Modular System for Partial Discharge Monitoring

• Continuous high-speed monitoring in accordance with IEC 60270
• Ethernet interface, Modbus RTU/TCP, and optional 4–20 mA I/O
• LCD Touchdisplay with local visualization of status, alarms, and trends
• Upgrade option to PDSTD

Modular System for Partial Discharge Monitoring

• Continuous high-speed monitoring in accordance with IEC 60270
• Ethernet interface, Modbus RTU/TCP, and optional 4–20 mA I/O
• High PRPD resolution of 128/256 for accurate fault analysis
• Integrated diagnostic package

Modular System for Partial Discharge Monitoring

• Continuous high-speed monitoring in accordance with IEC 60270
• Simultaneous 5-channel real-time partial discharge monitoring
• Ability to cross-correlate signals for precise discharge localization
• Improved technique for 3-phase interference suppression

Modular System for Monitoring Shaft Magnetic Flux

• Continuous monitoring of shaft magnetic flux
• Ethernet interface, Modbus RTU/TCP, and optional 4–20 mA I/O
• LCD Touchdisplay with local visualization of status, alarms, and trends
• Modular system (2 to 16 channels) based on the M8009 platform

Modular System for Monitoring Shaft Voltage and Current

• Continuous monitoring of shaft voltage and current
• Ethernet interface, Modbus RTU/TCP, and optional 4–20 mA I/O
• LCD Touchdisplay with local visualization of status, alarms, and trends
• Modular system (2 to 16 channels) based on the M8016 platform

Modular System for Monitoring End-Winding Vibration

• Continuous monitoring of end-winding vibration
• Ethernet interface, Modbus RTU/TCP, and optional 4–20 mA I/O
• LCD Touchdisplay with local visualization of status, alarms, and trends
• Modular system (8 to 32 channels) based on the M8001 platform

• Nepřetržité vysokorychlostní monitorování hřídelového mag. toku
• Monitorování hřídelového proudu a napětí
• Monitorování chvění čel vinutí
• Monitorování částečných výbojů dle IEC 60270
